Stocked & Supported by M&G Industrial, Canberra
The BD‑360 Bench Drill and PD‑360 Pedestal Drill share the same heavy‑duty DNA — rigid cast‑iron construction, quiet belt‑drive operation, wide speed range, and user‑friendly controls. The PD‑360 steps up with a larger drill head, integrated work light, 20% larger quill diameter, and a square slotted table that accepts T‑nuts and clamps for serious work holding. Both machines are Ø20 mm rated, making them ideal for anyone needing consistent, accurate drilling in steel, alloy, timber, plastics, and general workshop materials. Perfect for home workshops, farms, fabrication shops, maintenance teams, and engineering departments across Canberra.

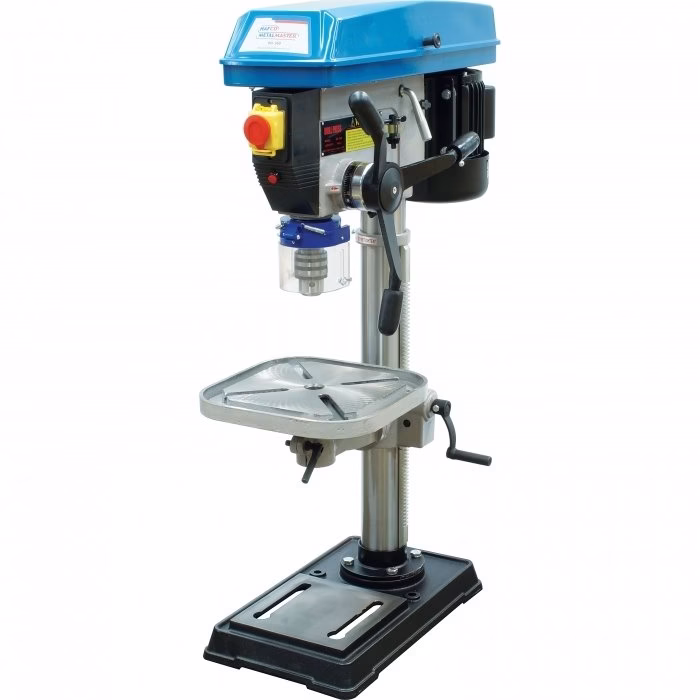

BD‑360 (D594) Heavy‑Duty Bench Drill — Belt Drive
Core Advantages
- Heavy‑duty cast‑iron & machined‑steel construction
- Quiet V‑belt drive with 12 spindle speeds (280–2380 rpm)
- 0.75 kW / 1 hp copper‑wound induction motor
- 2MT spindle for direct‑fit taper shank drills
- 16 mm keyed chuck with 2MT arbor included
- Rack‑and‑pinion table height adjustment
- Table tilts ±45°, rotates 360°, or swings away for base drilling
- Magnetic safety switch with emergency stop
- Safety chuck guard with flip‑up screen
- Thick‑walled column for rigidity
- One‑piece cast‑iron feed lever with soft‑grip handles

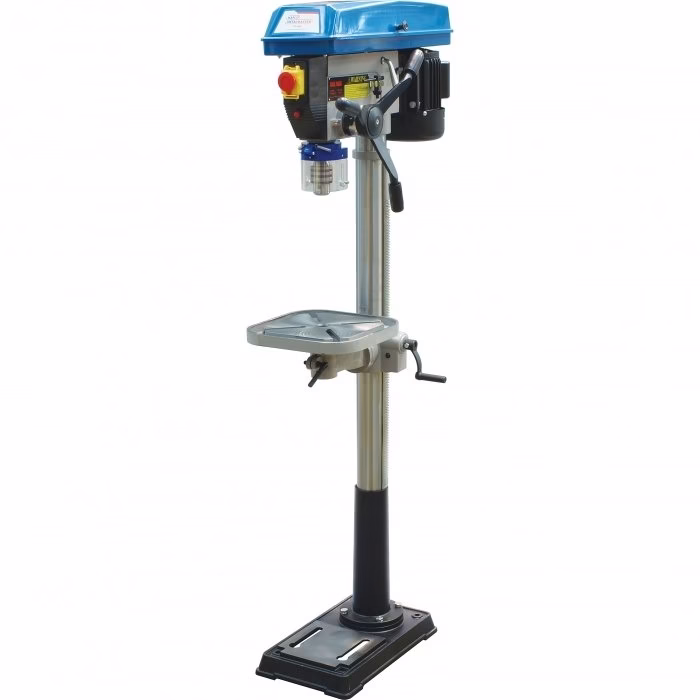

PD‑360 (D596) Heavy‑Duty Pedestal Drill — Belt Drive
Everything the BD‑360 offers — plus more workspace, more accuracy, more usability
The PD‑360 is the big brother of the BD‑360, carrying over all the user‑friendly features while adding serious upgrades:
Enhanced Features
- Larger drill head with work light mounted underneath for direct illumination
- 20% larger quill diameter for improved accuracy and reduced deflection
- Square slotted table — more surface area, accepts T‑nuts & clamps
- Increased throat depth & working height for larger components
- Ideal for repetitive drilling, jigs, fixtures & production setups
Shared Heavy‑Duty Features
- Quiet V‑belt drive with 12 speeds (280–2380 rpm)
- 0.75 kW / 1 hp induction motor
- 2MT spindle + 16 mm keyed chuck included
- Rack‑and‑pinion table height adjustment
- Table tilts ±45°, rotates 360°, or swings away
- Magnetic safety switch + pulley‑guard micro‑switch
- Adjustable safety chuck guard
- One‑piece cast‑iron feed lever with comfort grips
Included Accessories
- 16 mm keyed drill chuck & 2MT arbor
- Chuck key
- Drill drift tool for removing chuck or taper shank drills
Optional Accessories
- Replacement 16 mm Drill Chuck (C290)
- Replacement 2MT × JT3 Arbor (D442A)
Why Canberra Workshops Choose BD‑360 & PD‑360
- Heavy‑duty construction for long service life
- Accurate, repeatable drilling for Ø20 mm work
- Quiet, reliable belt‑drive system
- Excellent ergonomics & safety features
- Ideal for home, farm, fabrication & maintenance
- M&G Industrial stocks both models locally for fast supply & support
