Permanent‑Magnet Mag Drill – Ultra‑Lightweight, Fully Portable

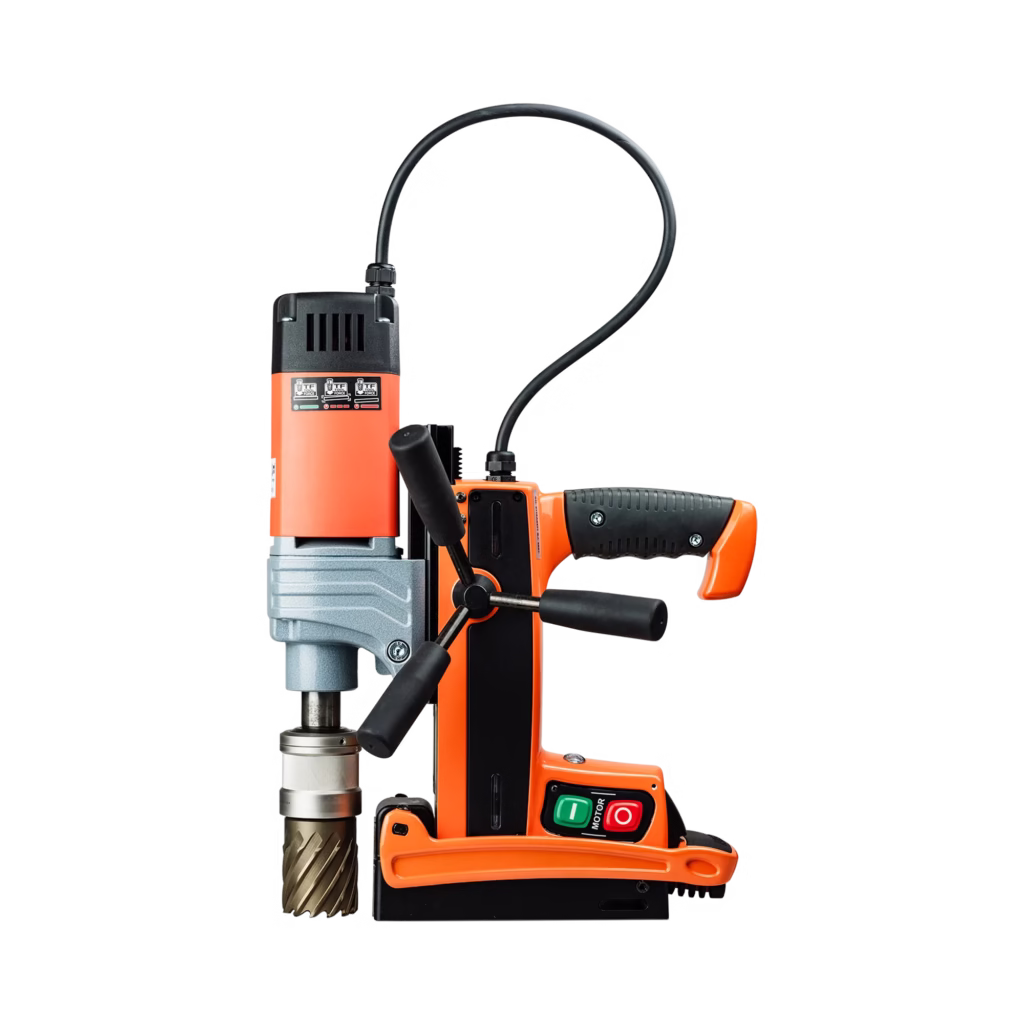

The Excision Magnex Magnetic Base Drill 40 (18801) is a compact, German‑engineered mag drill built around a powerful permanent magnet, making it ideal for onsite drilling where electrical power is potentially intermittent. With no need for a powered electromagnet, the Magnex 40 delivers reliable holding force on steel 1.6mm thick and above, ensuring safe, stable drilling in workshop and field environments. Weighing only 9.9kg, the Magnex 40 is one of the lightest industrial‑grade mag drills available. It accepts 19mm Weldon shank cutters and features a double dovetail height‑adjustable slide, allowing operators to use standard twist drills with a drill chuck. Solid brass guides ensure smooth, rigid, vibration‑free operation.
Key Features of the Excision Magnex Drill 40
Permanent Magnet – not reliant on a power source
- Strong permanent magnetic base
- Safe and reliable on steel ≥ 1.6mm
- Ideal for remote sites, elevated work, and mobile technicians
Ultra‑Lightweight & Compact
- Only 9.9kg
- Easy to carry, position, and operate
- Perfect for tight spaces and overhead work
Height‑Adjustable Double Dovetail Slide
- Increased drilling range
- Compatible with standard twist drills
- Allows use of keyless drill chucks
- Expands capability beyond core drilling
Rigid, Vibration‑Free Drilling
- Solid brass guides with spring loading
- Smooth, controlled gliding
- Reduced chatter and improved cutter life
Direct Weldon Arbor Spindle
- Accepts all 19mm Weldon shank core drills
- No adaptors required
- Maximum torque transfer and accuracy
Typical Applications
- Onsite drilling where power is unavailable
- Structural steel fabrication
- Mobile engineering and field service
- Maintenance and repair work
- Steel beams, plates, frames, and assemblies
- Workshop drilling with twist drills or core drills
Why Canberra Workshops Choose the Magnex 40 from M&G Industrial
- Local stock and fast supply
- Genuine Excision tooling support
- Lightweight but industrial‑grade
- Perfect for remote, onsite, and workshop drilling
- German‑made reliability with zero‑power magnet operation
