High‑Performance Vibration, Shock & Noise Isolation for Machinery, Equipment & Structures
The Mackay Multicushion System is a modern, modular approach to vibration isolator selection. With a wide range of sizes, durometers, and interchangeable metric/imperial studs, the system allows engineers and maintenance teams to select the ideal cushion first, then match it with the correct stud configuration for the application. This flexibility makes Mackay isolators suitable for machinery, pumps, compressors, HVAC equipment, generators, conveyors, and general industrial plant where vibration control, noise reduction, and equipment protection are critical. M&G Industrial stocks a comprehensive range of Multicushions, Multibuffers, Flexistraps, Conflex isolators, flange isolators, bonded buffers, and machinery feet — ready for immediate supply across Canberra and the ACT region.
Why Choose Mackay Multicushion Isolators?
Modular System for Maximum Flexibility
- Choose the cushion size & durometer first
- Then select the stud combination (metric or Whitworth)
- Reduces over‑specification and simplifies replacement
Wide Range of Durometers & Sizes
- 55 duro and 70 duro options
- Widths from 13mm to 50mm
- Heights from 15mm to 45mm
Interchangeable Stud Options
- Metric: M4, M6, M8, M10, M12
- Imperial: 1/4″, 5/16″, 3/8″ Whitworth
Engineered for Harsh Industrial Environments
- High load‑bearing capacity
- Excellent vibration damping
- Long service life
- Suitable for mobile and fixed plant

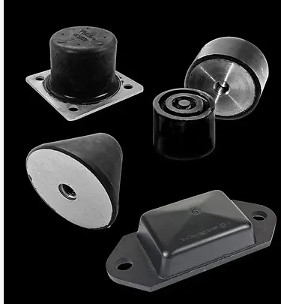

M&G Industrial Carries the Following Mackay Isolator Products
🔩 Stud Combinations (Metric & Whitworth)
- M4M4 – 4mm × 4mm stud
- M6M6 – 6mm × 6mm stud
- M6M8 – 6mm × 8mm stud
- M6W14 – 6mm × 1/4″ Whitworth stud
- M8M8 – 8mm × 8mm stud
- M8M10 – 8mm × 10mm stud
- M8W516 – 8mm × 5/16″ Whitworth stud
- M10M10 – 10mm × 10mm stud
- M10M12 – 10mm × 12mm stud
- M10W38 – 10mm × 3/8″ Whitworth stud
🟦 Multicushion Isolators (Width × Height × Durometer)
- M10131555 – 13w × 15h × 55 duro
- M10162055 – 16w × 20h × 55 duro
- M10252055 – 25w × 20h × 55 duro
- M10202555 – 20w × 25h × 55 duro
- M10253055 – 25w × 30h × 55 duro
- M10302070 – 30w × 20h × 70 duro
- M10303055 – 30w × 30h × 55 duro
- M10403055 – 40w × 30h × 55 duro
- M10404055 – 40w × 40h × 55 duro
- M10504555 – 50w × 45h × 55 duro
🟧 Multibuffer
- M12303055 – 30w × 30h × 55 duro
🟩 Flange Isolators
- M11060 – 48w × 22h × 60 duro
- M11460 – 60w × 29h × 60 duro
🟪 Machinery Foot
- M177MF – Machinery foot mount
🟫 Bonded Buffer
- M172M8 – 42w × 50h × M8 stud
🟨 Conflex Isolators
- M111255
- M111265
🟦 Flexistrap (With Hooks)
- FHS9K – 230mm
- FHS15K – 380mm
- FHS24K – 610mm
- FHS31K – 785mm
Typical Applications
- Industrial machinery & equipment
- Pumps, compressors & blowers
- HVAC units & ducting
- Generators & engines
- Conveyors & material‑handling systems
- Electrical cabinets & control panels
- Mobile plant & transport equipment
Performance Characteristics
- High vibration damping
- Noise reduction
- Shock absorption
- Long service life
- Modular stud/cushion combinations
- Suitable for dynamic and static loads
Why Canberra Workshops Choose M&G Industrial
- Large local stock of Mackay isolators
- Fast supply for maintenance & repair
- Industrial‑grade technical support
- Reliable sourcing for OEM and retrofit applications
