Vertex HV‑6 (Ø152 mm) & HV‑8 (Ø203 mm) Rotary Tables
High‑Accuracy Horizontal/Vertical Rotary Tables for CNC & Manual Milling Machines
The Vertex HV‑Series Rotary Tables are engineered for machinists who demand precision work positioning, repeatable indexing, and smooth rotation under load. Manufactured in Taiwan from high‑density Meehanite cast iron, these tables deliver the rigidity, accuracy and longevity required in fabrication shops, toolrooms, maintenance departments, and CNC environments across Canberra.
Designed for versatility, both the HV‑6 and HV‑8 can be mounted in horizontal or vertical orientation, enabling accurate milling, drilling, slotting, circular interpolation, and bolt‑circle machining. With optional indexing plates, the HV‑Series can also function as a dividing head.
Key Features & Technical Advantages
Precision Construction
- Manufactured from high‑density Meehanite cast iron
- Ground table and body surfaces for smooth, accurate rotation
- Critical wear surfaces hand‑finished for ultra‑precision
- Each table is accuracy‑tested using Heidenhain electronic equipment
High‑Accuracy Worm Drive
- Hardened & precision‑ground worm
- 90:1 ratio for fine control
- One full handle turn = 4° table rotation
- Vernier‑graduated collar allows readings down to 10 seconds
Full 360° Graduated Table
- Clearly marked 360° scale for fast, repeatable positioning
- Ideal for bolt circles, arcs, radii, and complex milling operations
Horizontal or Vertical Operation
- Mount flat for rotary milling

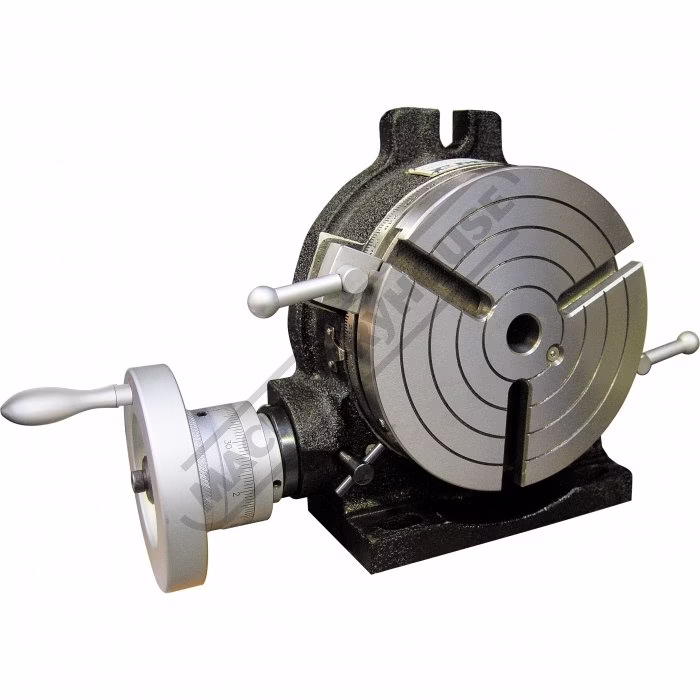

- Stand upright for indexing, drilling, or dividing work
Models Stocked by M&G Industrial (Canberra)
R006 HV‑6 Vertex Rotary Table — Ø152 mm
- Compact, rigid, ideal for smaller mills & precision setups
- Perfect for toolrooms, jigs, fixtures & light production
R006 HV‑8 Vertex Rotary Table — Ø203 mm
- Larger work envelope for heavier components
- Increased clamping area for fixtures, vices & rotary setups
Applications Across Canberra Workshops
- Bolt‑circle drilling
- Circular slotting & milling
- Radius machining
- Indexing & dividing
- Precision angular positioning
- CNC and manual milling machine setups
